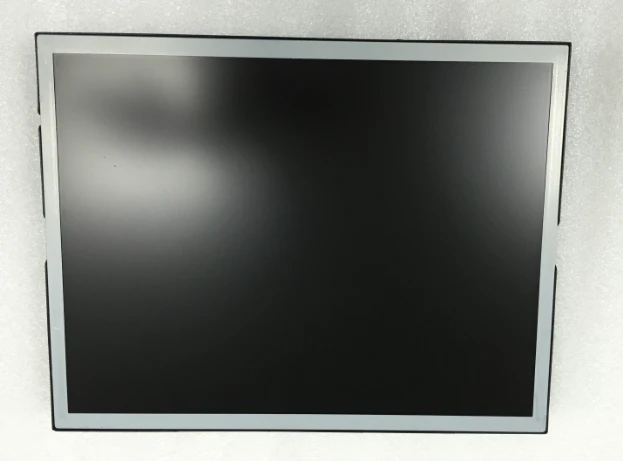

open frame monitor 10.4 inch led monitor
Specifications:
| 10.1" Open Frame TOUCH Monitor | |
| Mode Name | LC-OF1011T-CA |
| Screen Size | 10.4″ |
| Active Display Area (mm) | 216.96mm(W)×135.6mm(H) |
| Display Mode | 16:10 |
| LCD Type | TFT-LCD |
| Resolution | 1280×800 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.264(H)×0.264(V) |
| Brightness(nits) | 350cd/㎡ |
| Contrast Ratio | 800:1 |
| Viewing Angle | 170(H) /170(V) |
| Response Time | 5ms |
| Backlight | LED backlights |
| Interface | VGA,DVI |
| Optional interface | HDMI,BNC |
| Power | DC12V 3A 50HZ/ 60HZ/ 75HZ |
| Power Consumption | ≦15W |
| Plug & Play | DDC 1/2B |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
| Menu | Chinese/English(other languages supported) |
| TOUCH | |
| Standard touch options | resistive 5 wire, capacitive touch optional |
| Customized touch options | IR touch / SAW touch |
| Mount Way | |
| Mounting | VESA 75mm/100mm,flanges at side option |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001(optional UL) |
| Warranty | 1.5 years |
| Application | |
| ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment | |
