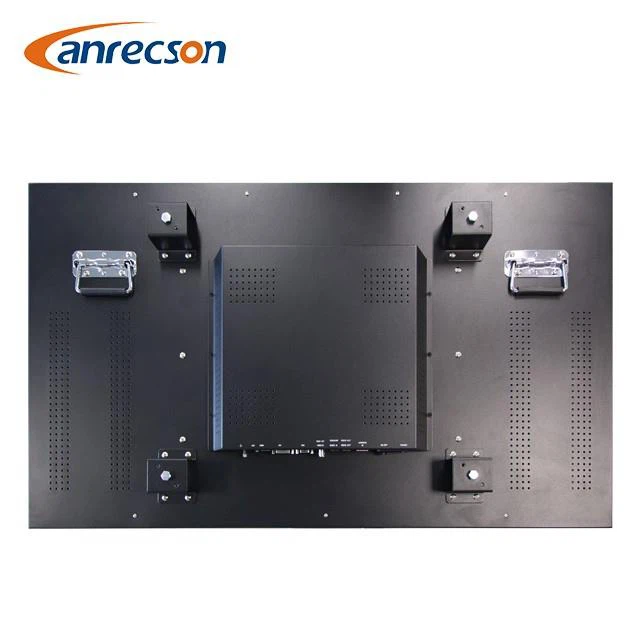

55 Inch Daisy Chain LCD Video Wall for security center/shopping mall/conference room/Cinema etc.
| odel Name | LC-MU5503H | LC-MU5502H | ||||
| Screen Size | 55" | |||||
| Active Display Area | 1213.5mm(W) x 684.3mm(H) | |||||
| Display Model | 16:9 | |||||
| Resolution | 1920x1080 | |||||
| Display Color | 16.7M (8bit) | |||||
| Pixel Pitch(mm) | 0.630(H) x 0.630(V) | |||||
| Brightness (nits) | 500cd/㎡ | 500cd/㎡ | ||||
| Contrast | 3500:1 | |||||
| View Angle (H/V) | 178°/178° | |||||
| Response Time | 8ms | |||||
| Bezel Gap | 3.5mm | 1.8mm | ||||
| Backlight | LED | |||||
| Input and Output / Video Wall Controller (Built-in each Screen) | ||||||
| Input | VIDEO (BNC x 1)、Y,Pb,Pr/Y,Cb,Cr (BNC x 3)、S-video （optional） | |||||
| HDMI x 1、 DVI x 1、 SDI (optional) | ||||||
| VGA x 1 | ||||||
| Output | VIDEO (BNC x 1) | |||||
| Control signal input and loop out | RJ45 x 1 | |||||
| RJ45 x 2 | ||||||
| ISP Upgrade Input | RJ45 x 1 / USB | |||||
| Video System | ||||||
| Color System | PAL/NTSC/SECAM | |||||
| compatible HDTV Mode | 480P,576P,720P,1080I, 1080P | |||||
| 3D Combfilter | YES | |||||
| OSD Display | Chinese/English | |||||
| Power | ||||||
| Power Supply | AC100V～240V 50/60Hz | |||||
| Maximum Power Consumption | ≤150W | ≤150W | ||||
| Control Mode | RS232 control, Remote Control, External Matrix Control | |||||
| Temperature | ||||||
| Working Temperature | 0℃～50℃ | |||||
| Working Humidity | 20%-80% | |||||
ANrecson Video wall projects in overseas:
