Brief Features
- Various sizes from46“--55”Samsung/LG such as 46",49”,55”,Bezel Seam:1.8mm, 3.5mm, 5.5mm
- With free built-in video wall controller (7d/24h)& free software that could be easily operated.
- With wall mount/floor standing brackets, Cabinet type optional
- Manufacturer with registered capital of 10 million or more
- Manufacturer with ISO9001 Quality Management System Certification,
- 3C certification for products,CB/ISO9001/Energy etc. Software copyright certificate.
- Independent innovation certificate for products.Ministry of Public Security product testing and certification
- Various applications like surveillance centre, government, shopping mall/center, Franchise Shop/Store, airport, MTR advertising, Night club, bar, KTV etc.
Product specification
Screen Size | 55"(46", 49" Optional) |
Active Display Area | 1213.5mm(W) x 684.3mm(H) |
Display Model | 16:9 |
Resolution | 1920x1080 |
Display Color | 16.7M (8bit) |
Pixel Pitch(mm) | 0.630(H) x 0.630(V) |
Brightness (nits) | 700cd/㎡ |
Contrast | 3500:1 |
View Angle (H/V) | 178°/178° |
Response Time | 8ms |
Bezel Gap | 1.7mm |
Backlight | LED |
Input and Output / Video Wall Controller (Built-in each Screen) | |
Input | VIDEO (BNC x 1)、Y,Pb,Pr/Y,Cb,Cr (BNC x 3)、S-video （optional） |
HDMI x 1、 DVI x 1、 SDI (optional) | |
VGA x 1 | |
Output | VIDEO (BNC x 1) |
Control signal input and loop out | RJ45 x 1 |
RJ45 x 2 | |
ISP Upgrade Input | RJ45 x 1 / USB |
Video System | |
Color System | PAL/NTSC/SECAM |
compatible HDTV Mode | 480P,576P,720P,1080I, 1080P |
3D Combfilter | YES |
OSD Display | Chinese/English |
Power | |
Power Supply | AC100V～240V 50/60Hz |
Maximum Power Consumption | ≤250W |
Control Mode | RS232 control, Remote Control, External Matrix Control |
Working Environment | |
Working Temperature | 0℃～50℃ |
Working Humidity | 20%-80% |

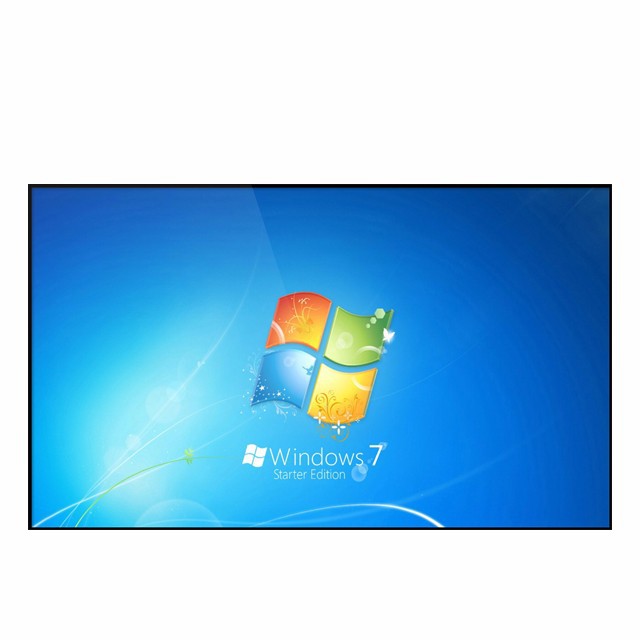

Product Images
