Description
Technical Parameters

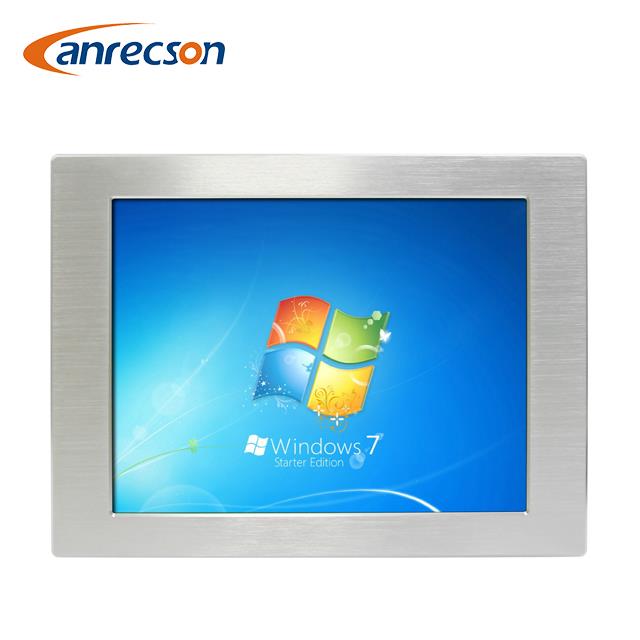

15 Inch CrystalSky High Brightness Monitor
| LCD PANEL | |
| Display Panel | 15 inch viewable Enhanced TFT LCD |
| Dot Pitch | 0.297(H) x 0.297(V) mm |
| Max Resolution | 1024 x 768 XGA |
| Contrast Ratio | 700:1 (typical) |
| Brightness | 1200 cd/m2 (typical) |
| Uniformity | 80% (minimum) |
| Backlight MTBF | 50,000 hours (minimum at 25°C) |
| Response Time | 4 ms (typical) |
| Display Colors | 16.7 million |
| Viewing Angle | ±80° L/R, 60° U, 80° D (typical at CR=10) |
| VIDEO AND POWER | |
| OSD Controls | Brightness, Contrast, Phase, Clock, Color, H&V position, Auto-tune, Recall |
| Input Signal | RGB analog 0.7V peak to peak |
| Video Input | D-sub 15 pin analog VGA, DVI |
| Power Supply | AC/DC 12V power adapter, universal 100-240 Volts |
| MECHANICAL AND ENVIRONMENT | |
| Operating Temp. | -30~85 ° C [-20~185 ° F] |
| Humidity | 0-90% relative humidity, non-condensing |
| Dimensions | 391.6 x 299 x 46.5 mm [15.4 x 11.8 x 1.83 inch] |
| Net Weight | 3.9 Kg [8.5 lbs] |
