12.1 Inch CCTV Monitor with bnc input
Specifications:
| 12.1" commercial LCD CCTV monitor (plastic case) | |
| Mode Name | LC-MS1202 |
| Screen Size | 12.1" |
| Active Display Area (mm) | 246mm(W)×184.5mm(H) |
| Display Mode | 4:3 |
| LCD Type | TFT-LCD |
| Resolution | 800×600 |
| Display Color | 16.7M |
| Pixel Pitch(mm) | 0.3705(H)×0.3705(V) |
| Brightness(nits) | 330cd/㎡ |
| Contrast Ratio | 450:1 |
| Viewing Angle | 140(H) /110(V) |
| Response Time | 10ms |
| Backlight | 2 CCFL |
| Input & Output | |
| Composite video input | 2 |
| Composite video output | 1 |
| Y,Pb,Pr/Y,Cb,Cr input | N/A |
| HDMI | 1 |
| S-Video | N/A |
| VGA | 1 |
| DVI | N/A |
| Power | |
| Power | DC12V 3A 50HZ/ 60HZ/ 75HZ |
| Power Consumption | ≦15W |
| Plug & Play | DDC 1/2B |
| OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
| Menu | Chinese/English(other languages supported) |
| Mount Way | |
| Mounting | stand mount, VESA mount |
| Certificate Approval | CE,RoHS,CCC,FCC,ISO9001(optional UL) |
| Warranty | 1.5 years |

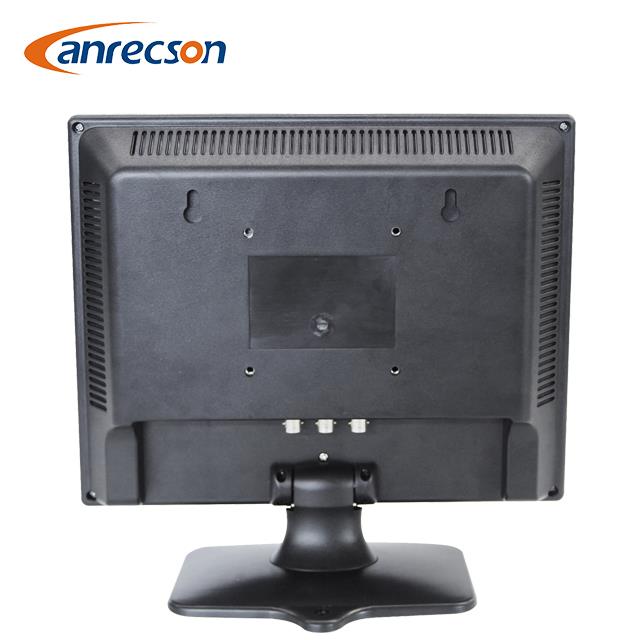

Product Pictures:
standard interface: HDMI+BNC+VGA, remote controller supported.
High defination image quality, long-lasting durability help you with the work in security monitoring.
Contact us for the best price and model proposed!
