1, Select the wall where the splicing screen needs to be installed, and install the steel structure keel on the wall as the bearing body. When laying the keel, pay attention to the level with the wall. As shown in the following figure:

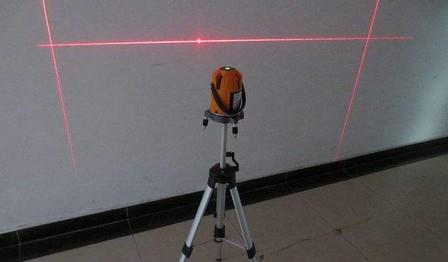

2,The splicing screen bracket is two kinds of crossbars with a horizontal length of two meters and a height of one meter and six. Use a spirit level to make horizontal and vertical lines on the wall, find the position of a crossbar at the bottom according to the specific situation of the splicing screen configuration, and use a pencil to draw the position.
2.The splicing screen bracket is two kinds of crossbars with a horizontal length of two meters and a height of one meter and six. Use a spirit level to make horizontal and vertical lines on the wall, find the position of a crossbar at the bottom according to the specific situation of the splicing screen configuration, and use a pencil to draw the position.
3,Stabilize the crossbar at the pencil mark, and use a hand drill to drill holes in the crossbar and keel. In this process, the crossbar cannot be moved, and the hand should be stable.
4,Follow the above steps to set up the cross bar and fix it. After that, the vertical bar is fixed together with the horizontal bar by the corner fixing piece.

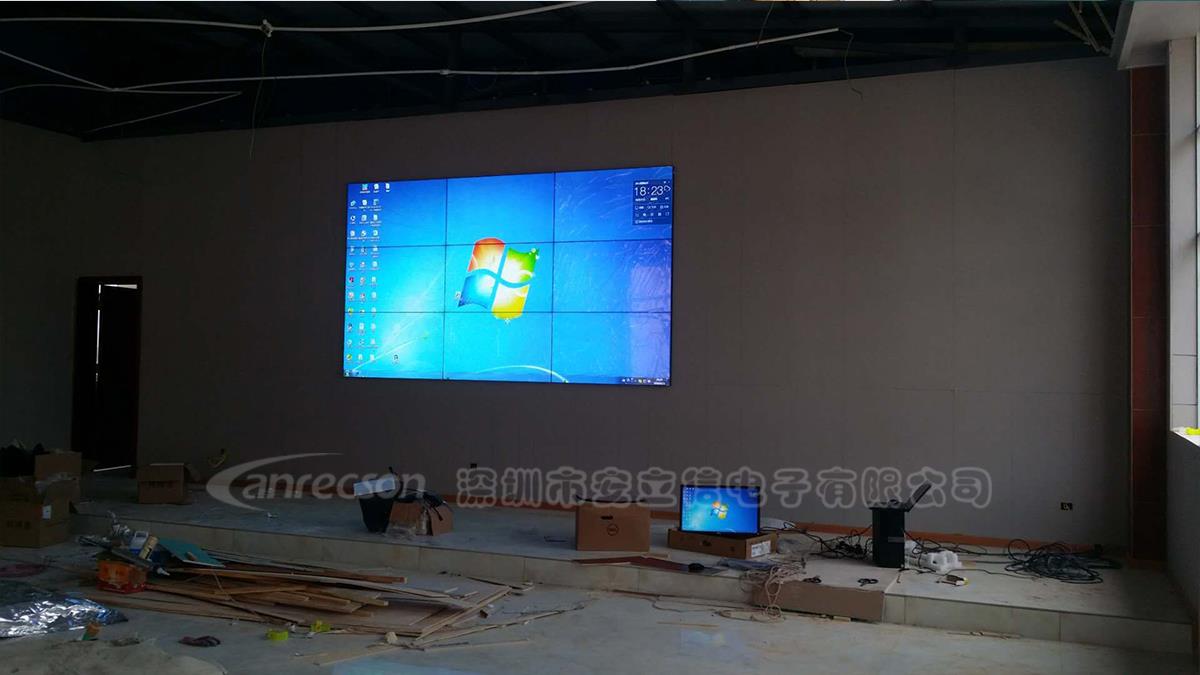

5,Fix the box after splicing the screen on the screen, insert the cable, and then fix the hook on the back of the screen. Hang the screen from the bottom to the previous column, and use the nut on the hook to adjust the plane of the screen. Hang all splicing screens at one time and adjust the horizontal and vertical planes.
